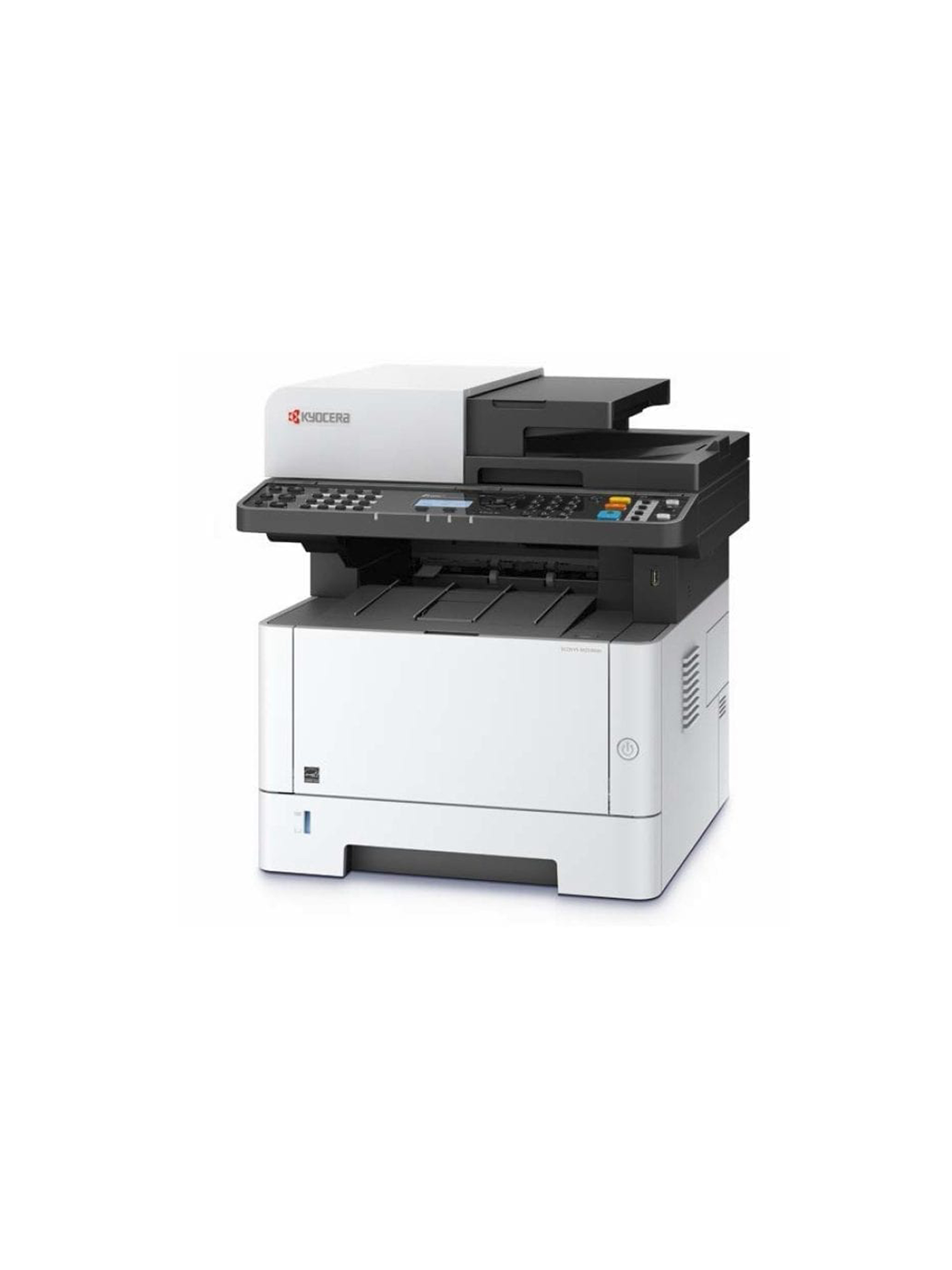

ECOSYS M2540dw
Product Overview
The ECOSYS M2540dw is a black and white multi-functional printer with advanced features for the budget conscious business. This copy, print, scan and fax solution is designed for ease of use, exceptional print quality, reliability, and low TCO with ECOSYS long life consumables. On-the-go printing and scanning capabilities allow workgroups of all sizes to easily drive their business from anywhere. With print speeds up to 42ppm, advanced security features, and convenient walk-up USB accessibility, the ECOSYS M2540dw can affordably take your business to the next level.
- 42 ppm B&W
- Print/Scan/Copy
- 600 x 600 dpi, Up To Fine 1200 dpi
- Standard: 350 Sheets
- Maximum: 850 Sheets
Related Downloads
Brochure
- not available
Specifications
| Technology | Kyocera ECOSYS Laser MFP |
| Control Panel Type | 5 Line LCD with Hard Key Control Panel |
| Product Category | A4 B&W MFP |
| Functions (Print / Scan / Copy / Fax) | Print/Scan/Copy/Fax |
| Engine Speed | 42 ppm B&W |
| Warm-up Time | 20 Seconds |
| First Page Out Time (print/copy) | Print: 6.4 Seconds B&W Copy: 6.4 Seconds B&W |
| Resolution | 600 x 600 dpi, Up To Fine 1200 dpi |
| CPU | Cortex-A9 / 800MHz |
| Memory (std/max) | Standard: 256 MB RAM Maximum: 1.5 GB RAM |
| Electrical Requirements | 120V: 60Hz, 8.7A; 220-240V: 50Hz, 4.4A |
| Dimensions (W x D x H) | 47.4 cm x 41.1 cm x 43.7 cm |
| Mainframe Weight | 41.9 lbs |
| Maximum Monthly Duty Cycle | 80,000 Pages Per Month |
| Power Consumption | Typical Electricity Consumption (TEC): 120V: 1.72 kWh/week; 220-240V 1.66 kWh/week Maximum (Including Options): 120V: 1007W; 220V-240V: 990W Printing: 120V: 681W; 220-240V: 661W Ready Mode: 120V: 21W; 220-240V: 21W Sleep Mode: 120V: 1W; 220-240V: 1W Power Off: 120V: 0.1W; 220-240V: 0.1W |
| Input Capacity (std/max) | Standard: 350 Sheets Maximum: 850 Sheets |
| Output Capacity (std / max) | Standard: 250 Sheets Maximum: 250 Sheets |
| Paper Sources (std / max) | Standard: 1 Drawer + 1 MPT Maximum: 3 Drawers + 1 MPT |
| Maximum Paper Size | 8.5″ x 14″ |
| Supported Paper Weights | Drawers: 16 lb Bond – 90 lb Index MPT: 16 lb Bond – 120 lb Index |
| Input Materials | Plain Paper, Bond Paper, Recycled Paper, Envelopes, OHP, Velum, Letterhead, Labels |
