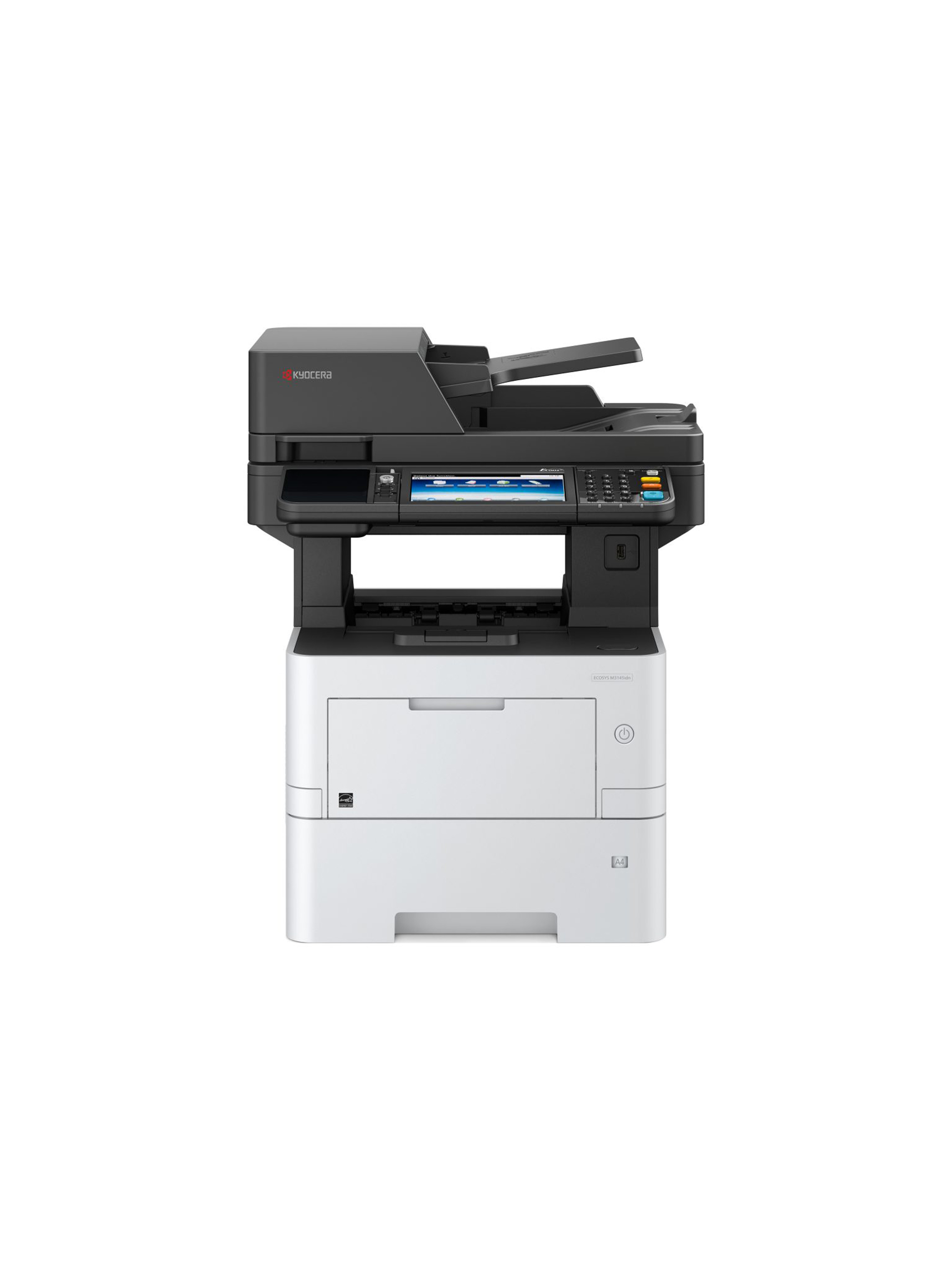

ECOSYS M3145idn
Product Overview
The ECOSYS M3145idn, a black and white A4 (up to 8.5” x 14”) MFP, combines impressive performance, at speeds up to 47 ppm, with advanced features, all in a compact footprint. This Print, Copy and Color Scan solution is designed for ease-of-use with a 7” color touch screen tablet-like interface (TSI), and includes business driving features such as, exceptional print quality, up to Fine 1200 dpi and high paper capacity, up to 2,600 sheets. And, with the capability to run HyPAS Business Applications, solutions designed to fit your unique workflows and On-The-Go secure mobile Print/Scan needs, the ECOSYS M3145idn is a powerhouse ready to propel your business to the next level
- 47 ppm B&W
- Print/Scan/Copy
- 600 x 600 dpi, Up To Fast 1200 dpi
- Standard: 600 Sheets
- Maximum: 2,600 Sheets
Related Downloads
Brochure
- not available
Specifications
| Technology | Kyocera ECOSYS Laser MFP |
| Control Panel Type | 7″ Colour TSI |
| Product Category | A4 B&W MFP |
| Functions (Print / Scan / Copy / Fax) | Print/Scan/Copy |
| Engine Speed | 47 ppm B&W |
| Warm-up Time | 16 Seconds |
| First Page Out Time (print/copy) | Print: 5.9 Seconds B&W Copy: 8 Seconds B&W |
| Resolution | 600 x 600 dpi, Up To Fast 1200 dpi |
| Bit Depth | NULL |
| CPU | ARM Cortex-A9 1,200MHz |
| Memory (std/max) | Standard: 1 GB RAM Maximum: 3 GB RAM |
| Hard Disk Drive (Standard / Optional) | Optional: HD-6 (32 GB SSD) or HD-7 (128 GB SSD) |
| Electrical Requirements | 120V: 60Hz, 10A; 220-240V: 50Hz, 5.6A |
| Dimensions (W x D x H) | 48 cm x 49.5 cm x 56.4 cm |
| Mainframe Weight | 49.6 lbs |
| Maximum Monthly Duty Cycle | 150,000 Pages Per Month |
| Maximum average monthly print volume | NULL |
| Power Consumption | Typical Electricity Consumption (TEC): 120V: 2.4 kWh/week; 220-240V 2.4 kWh/week Maximum (Including Options): 120V: 1,218W; 220V-240V: 1,285W Printing: 120V: 735/676W; 220-240V: 653/630W |
| Input Capacity (std/max) | Standard: 600 Sheets Maximum: 2,600 Sheets |
| Output Capacity (std / max) | Standard: 250 Sheets Maximum: 250 Sheets |
| Paper Sources (std / max) | Standard: 1 Drawer + 1 MPT Maximum: 6 Drawers + 1 MPT |
| Maximum Paper Size | 8.5″ x 14″ |
| Supported Paper Weights | Drawers: 16 lb Bond – 32 lb Bond MPT: 16 lb Bond – 120 lb Index |
| Input Materials | Plain Paper, Bond Paper, Recycled Paper, Envelopes, Cardstock, Transparencies, Labels |
| Standard Interface | NULL |
