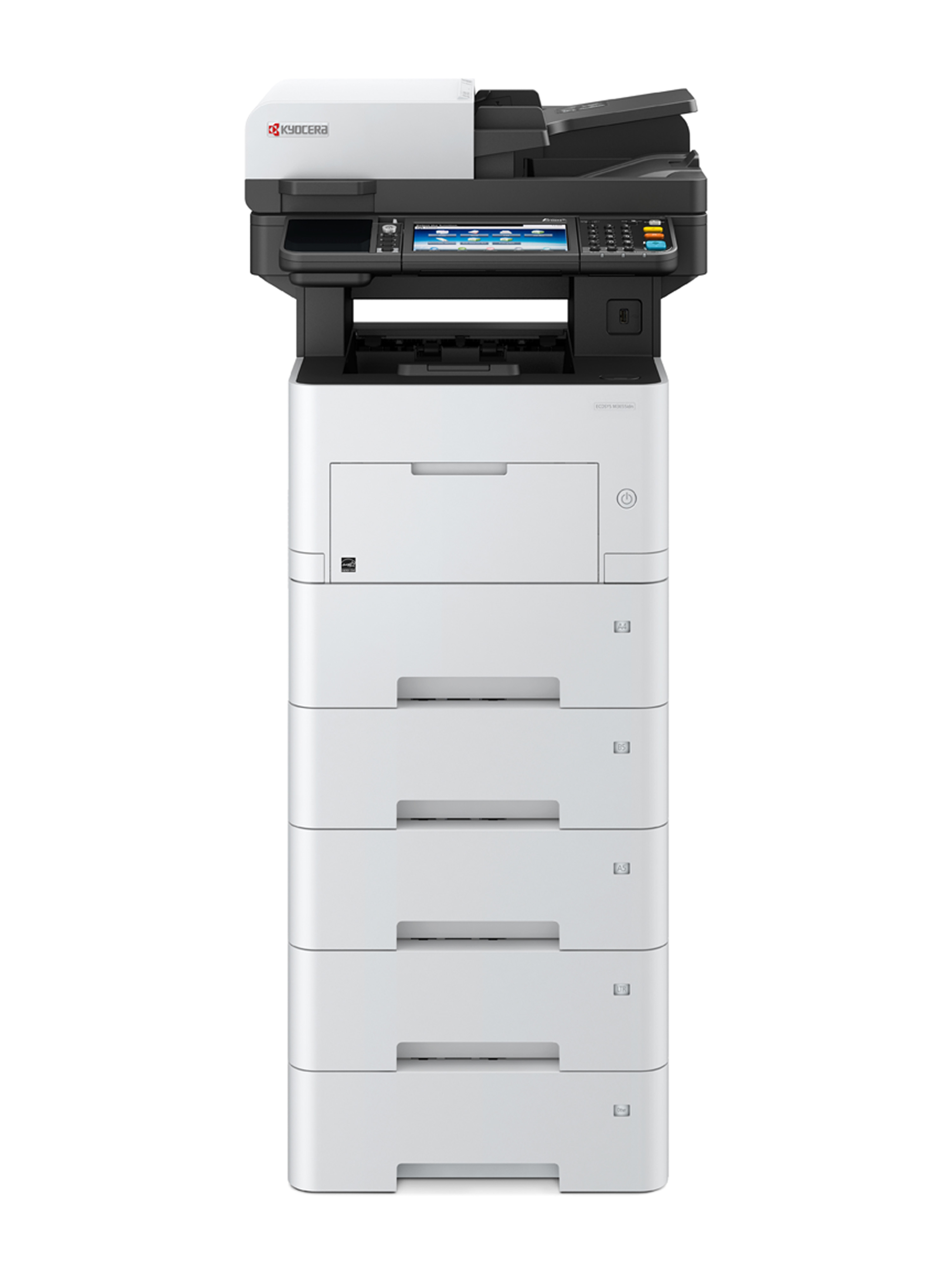

ECOSYS M3655idn


Product Overview

The ECOSYS M3655idn, a black and white A4 (up to 8.5” x 14”) MFP, combines impressive performance, at speeds up to 57 ppm, with advanced features, all in a compact footprint. This Copy, Print, Scan and Fax solution is designed for ease-of-use with a 7” color touch screen tablet-like interface (TSI), and includes business driving features such as, exceptional print quality, up to Fine 1200 dpi, a 100 Sheet Dual Scan Document Processor, and a high paper capacity, up to 2,600 sheets. And, with the capability to run HyPAS Business Applications, solutions designed to fit your unique workflows and On-The-Go secure mobile Print/Scan needs, the ECOSYS M3655idn is a powerhouse ready to propel your business to the next level.



  • 57 ppm B&W
  • Print/Scan/Copy/Fax
  • 600 x 600 dpi, Up To Fine 1200 dpi
  • Standard: 600 Sheets
  • Maximum: 2,600 Sheets


Related Downloads


Brochure

  • not available




Specifications

Technology Kyocera ECOSYS Laser MFP
Control Panel Type 7″ Color TSI
Product Category A4 B&W MFP
Functions (Print / Scan / Copy / Fax) Print/Scan/Copy/Fax
Engine Speed 57 ppm B&W
Warm-up Time 25 Seconds
First Page Out Time (print/copy) Print: 4.9 Seconds B&W
Copy: 6 Seconds B&W
Resolution 600 x 600 dpi, Up To Fine 1200 dpi
Bit Depth NULL
CPU ARM Cortex-A9 1,200MHz
Memory (std/max) Standard: 1 GB RAM
Maximum: 3 GB RAM
Hard Disk Drive (Standard / Optional) Optional: HD-6 (32 GB SSD) or HD-7 (128 GB SSD)
Electrical Requirements 120V: 60Hz, 10A; 220-240V: 50Hz, 5.6A
Dimensions (W x D x H) 48 cm x 49.5 cm x 56.4 cm
Mainframe Weight 53.1 lbs
Maximum Monthly Duty Cycle 250,000 Pages Per Month
Maximum average monthly print volume NULL
Power Consumption Typical Electricity Consumption (TEC): 120V: 3.2 kWh/week; 220-240V 3.2 kWh/week
Maximum (Including Options): 120V: 1,232W; 220V-240V: 1,307W
Copy/Print: 120V: 789/759W; 220-240V: 731/711W
Ready Mode: 120V: 56W; 220-240V: 54W
Sleep Mode: 120V: 0.5W; 220-240V: 0.5W
Power Off: 120V: 0.06W; 220-240V: 0.09W
Input Capacity (std/max) Standard: 600 Sheets
Maximum: 2,600 Sheets
Output Capacity (std / max) Standard: 500 Sheets
Maximum: 500 Sheets
Paper Sources (std / max) Standard: 1 Drawer + 1 MPT
Maximum: 5 Drawers + 1 MPT
Maximum Paper Size 8.5″ x 14″
Supported Paper Weights Drawers: 16 lb Bond – 32 lb Bond
MPT: 16 lb Bond – 120 lb Index
Input Materials Plain Paper, Bond Paper, Recycled Paper, Envelopes, Transparencies, Labels, Banner
Standard Interface NULL
