ECOSYS M3660idn
Product Overview

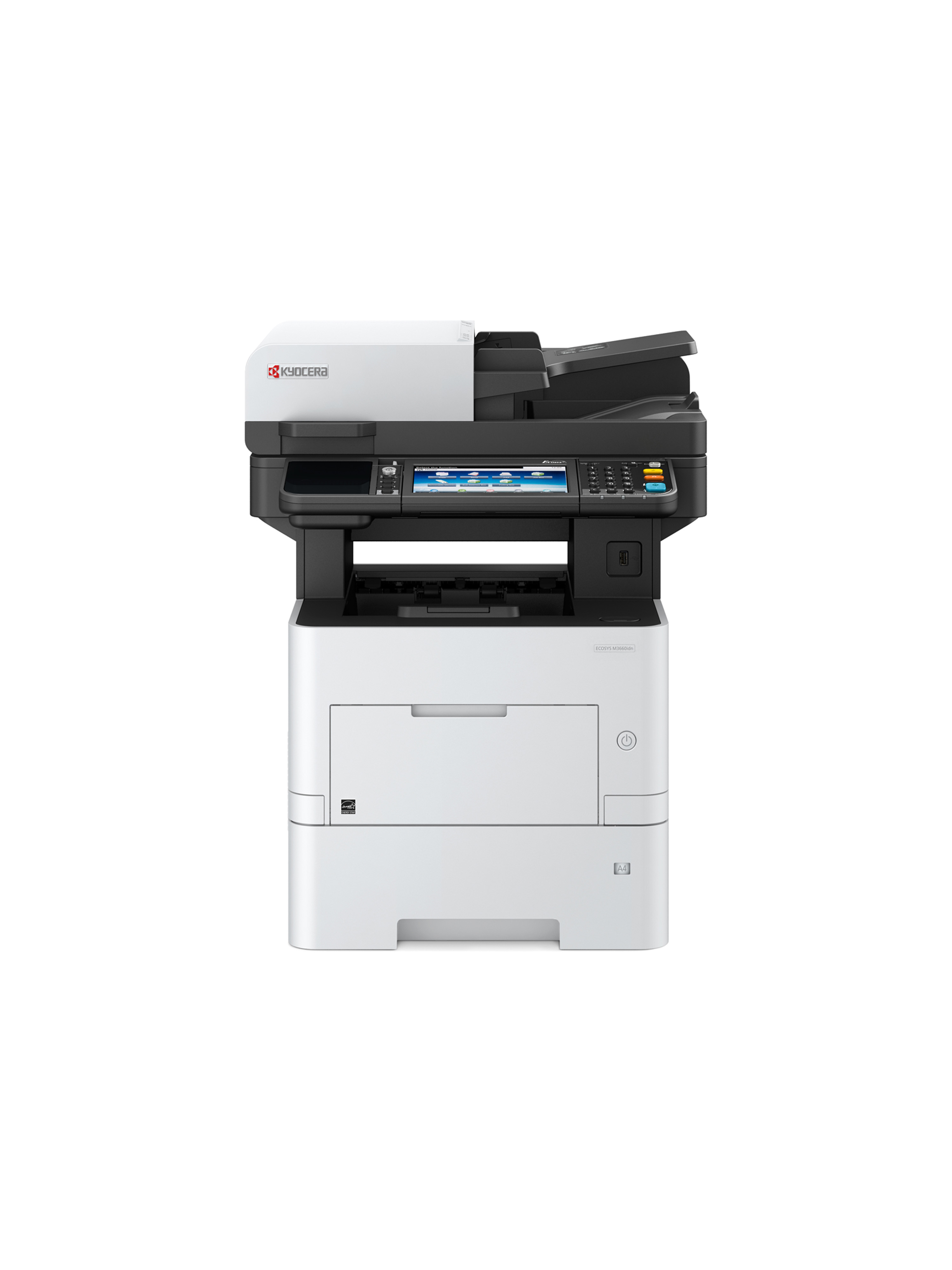

The ECOSYS M3660idn, a black and white A4 (up to 8.5” x 14”) MFP, combines impressive performance, at speeds up to 62 ppm, with advanced features, all in a compact footprint. This Copy, Print, Scan and Fax solution is designed for ease-of-use with a 7” color touch screen tablet-like interface (TSI), and includes business driving features such as, exceptional print quality, up to Fine 1200 dpi, a 100 Sheet Dual Scan Document Processor, and a high paper capacity, up to 2,600 sheets. And, with the capability to run HyPAS Business Applications, solutions designed to fit your unique workflows and On-The-Go secure mobile Print/Scan needs, the ECOSYS M3660idn is a powerhouse ready to propel your business to the next level.
- 62 ppm B&W
- Print/Scan/Copy/Fax
- 600 x 600 dpi, Up To Fine 1200 dpi
- Standard: 600 Sheets
- Maximum: 2,600 Sheets
Related Downloads
Brochure
- not available
Specifications
| Technology | Kyocera ECOSYS Laser MFP |
| Control Panel Type | 7″ Color TSI |
| Product Category | A4 B&W MFP |
| Functions (Print / Scan / Copy / Fax) | Print/Scan/Copy/Fax |
| Engine Speed | 62 ppm B&W |
| Warm-up Time | 25 Seconds |
| First Page Out Time (print/copy) | Print: 4.9 Seconds B&W Copy: 6 Seconds B&W |
| Resolution | 600 x 600 dpi, Up To Fine 1200 dpi |
| Bit Depth | NULL |
| CPU | ARM Cortex-A9 1,200MHz |
| Memory (std/max) | Standard: 1 GB RAM Maximum: 3 GB RAM |
| Hard Disk Drive (Standard / Optional) | Optional: HD-6 (32 GB SSD) or HD-7 (128 GB SSD) |
| Electrical Requirements | 120V: 60Hz, 10A; 220-240V: 50Hz, 5.6A |
| Dimensions (W x D x H) | 48 cm x 49.5 cm x 56.4 cm |
| Mainframe Weight | 53.1 lbs |
| Maximum Monthly Duty Cycle | 275,000 Pages Per Month |
| Maximum average monthly print volume | NULL |
| Power Consumption | Typical Electricity Consumption (TEC): 120V: 3.4 kWh/week; 220-240V 3.4 kWh/week Maximum (Including Options): 120V: 1,242W; 220V-240V: 1,312W Copy/Print: 120V: 824/800W; 220-240V: 746/723W Ready Mode: 120V: 56W; 220-240V: 54W Sleep Mode: 120V: 0.5W; 220-240V: 0.5W Power Off: 120V: 0.06W; 220-240V: 0.09W |
| Input Capacity (std/max) | Standard: 600 Sheets Maximum: 2,600 Sheets |
| Output Capacity (std / max) | Standard: 500 Sheets Maximum: 500 Sheets |
| Paper Sources (std / max) | Standard: 1 Drawer + 1 MPT Maximum: 5 Drawers + 1 MPT |
| Maximum Paper Size | 8.5″ x 14″ |
| Supported Paper Weights | Drawers: 16 lb Bond – 32 lb Bond MPT: 16 lb Bond – 120 lb Index |
| Input Materials | Plain Paper, Bond Paper, Recycled Paper, Envelopes, Transparencies, Labels, Banner |
| Standard Interface | NULL |
