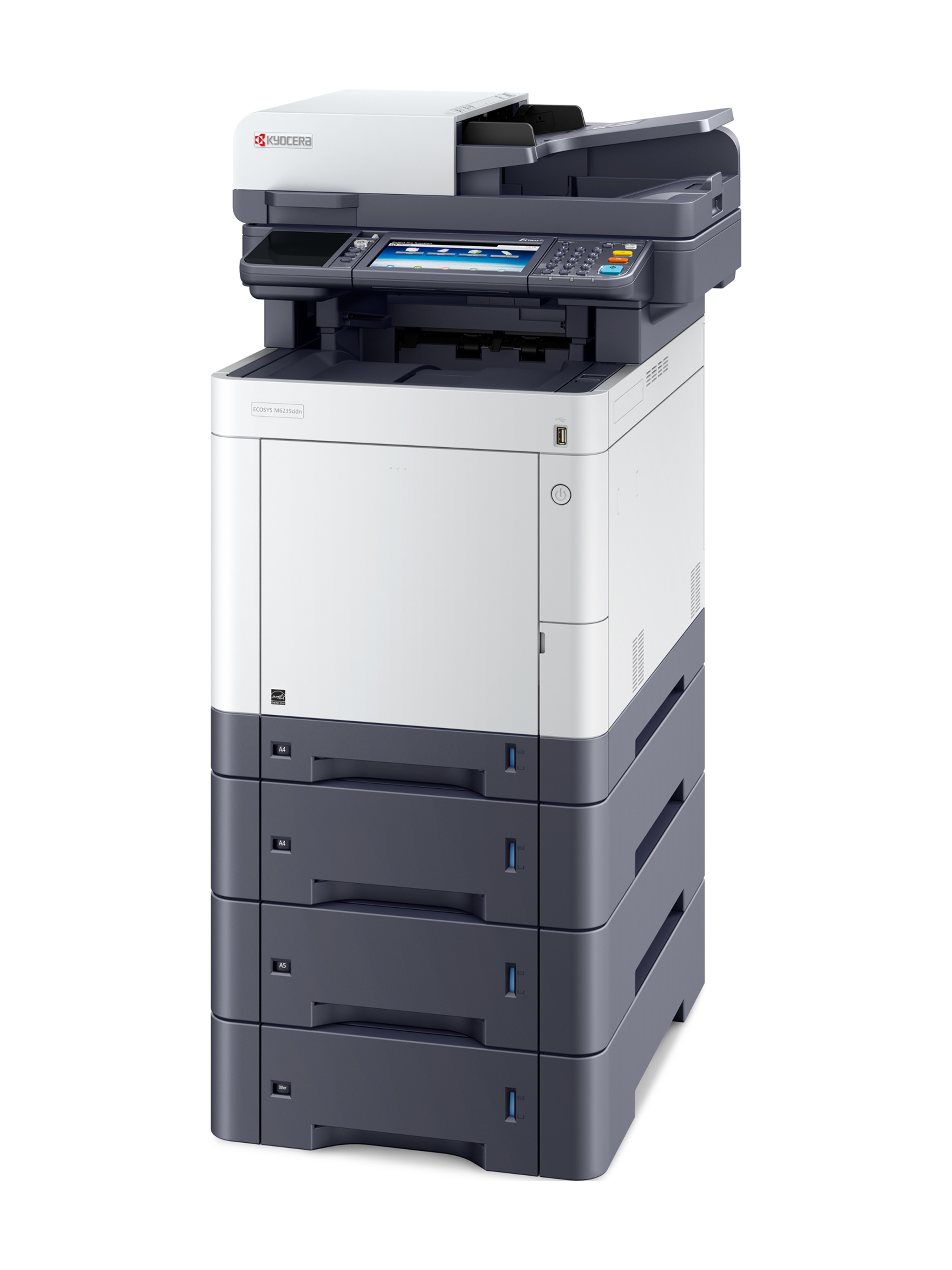

ECOSYS M6235cidn
Product Overview
The ECOSYS M6235cidn, Color A4 (up to 8.5” x 14”) MFP, combines impressive performance, at speeds up to 37 ppm, with advanced features, all in a compact footprint. This Print, Copy and Scan solution is designed for ease-of-use with a 7” color touch screen interface (TSI) and includes business driving features, such as a 100 Sheet Dual Scan Document Processor, the capability of running HyPAS Business Applications, On-The-Go secure mobile Print/Scan and much, much more! The ECOSYS M6235cidn, with exceptional business quality color output and low TCO, allows workgroups of all sizes to affordably drive productivity and take your business to the next level.
- 37 ppm B&W, 37 ppm Color
- Print/Scan/Copy
- 1200 x 1200 dpi
- Standard: 250 Sheets
- Maximum: 1,850 Sheets
Specifications
| Technology | Kyocera ECOSYS Laser MFP |
| Control Panel Type | 7″ Color TSI |
| Product Category | A4 Color MFP |
| Functions (Print / Scan / Copy / Fax) | Print/Scan/Copy |
| Engine Speed | 37 ppm B&W, 37 ppm Color |
| Warm-up Time | 25 Seconds |
| First Page Out Time (print/copy) | Print: 6 Seconds B&W, 7.5 Seconds Color Copy: 7.5 Seconds B&W, 8.5 Seconds Color |
| Resolution | 1200 x 1200 dpi |
| Bit Depth | NULL |
| CPU | ARM Cortex-A9 Dual Core 1.2GHz |
| Memory (std/max) | Standard: 1 GB Maximum: 3 GB |
| Hard Disk Drive (Standard / Optional) | Optional: HD-6 (32 GB SSD) or HD-7 (128 GB SSD) |
| Electrical Requirements | 120V: 60Hz, 10.3A; 220-240V: 50/60Hz, 5.6A |
| Dimensions (W x D x H) | 47.9 cm x 58 cm x 62 cm |
| Mainframe Weight | 80.5 lbs |
| Maximum Monthly Duty Cycle | 100,000 Pages Per Month |
| Maximum average monthly print volume | NULL |
| Power Consumption | Typical Electricity Consumption (TEC): 120V: 1,710 kWh/week; 220-240V 1,630 kWh/week Maximum (Including Options): 120V: 1,293W; 220V-240V: 1,369W Printing: 120V: 523W; 220-240V: 532W Copying: 120V: 551W; 220-240V: 547W Ready Mode: 120V: 73W; 220-240V: 84W Sleep Mode: 120V: 0.6W; 220-240V: 0.6W Power Off: 120V: 0.3W; 220-240V: 0.3W |
| Input Capacity (std/max) | Standard: 250 Sheets Maximum: 1,850 Sheets |
| Output Capacity (std / max) | Standard: 500 Sheets Maximum: 500 Sheets |
| Paper Sources (std / max) | Standard: 1 Drawer + 1 MPT Maximum: 4 Drawers + 1 MPT |
| Maximum Paper Size | 8.5″ x 14″ |
| Supported Paper Weights | Drawers: 16 lb Bond – 90 lb Index MPT: 16 lb Bond – 120 lb Index |
| Input Materials | Plain Paper, Bond Paper, Recycled Paper, Envelopes, Cardstock, Transparencies, Labels |
| Standard Interface | 10/100/1000BaseTX, Hi-Speed USB 2.0, 2 USB Host Interfaces, 1 Expansion Slots |
